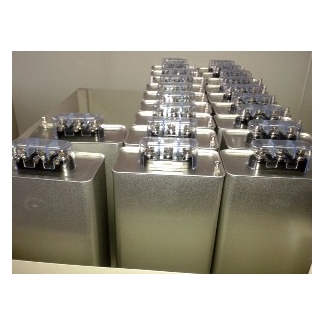

自愈式低壓電容器

型號：AC-BSMJ

AC-BSMJ1系列自愈式低壓并聯電容器適用于對稱電壓1000V及以下工頻交流電力系統中，作提高功率因素，減少無功損耗，改善電壓質量之用。

產品介紹

產品識別碼：

例如：AC-BSMJ1/0.45-8-3
(公司代碼：AC為公司簡稱，系列代號：并聯電容器B，浸漬代號：C油、S蠟、K干式，介質代號：金屬化聚丙烯薄膜MJ，外殼代號：1磨砂、2鋁殼、3冷軋鋼板，額定電壓：0.4為400V、0.45為450V、0.48為480V、0.525為525V、0.69為690V、0.23為230V，額定電容容量：8為8Kvar，相數：3為三相、1為單相，Y/N表示為分相補償。)

主要規格及參數：

產品型號	額定電壓(KV)	額定電流(A)	額定容量(Kvar)	額定電容(μF)	工作頻率(HZ)	L	W	H
AC-BSMJ1/0.4-8-3	0.4	11.5	8	159.2	50/60	167	57	110
AC-BSMJ1/0.4-10-3	0.4	14.4	10	199	50/60	167	57	130
AC-BSMJ1/0.4-12-3	0.4	17.3	12	238.9	50/60	167	57	180
AC-BSMJ1/0.4-14-3	0.4	20.2	14	278.7	50/60	167	57	180
AC-BSMJ1/0.4-15-3	0.4	21.7	15	298.6	50/60	167	57	180
AC-BSMJ1/0.4-16-3	0.4	23.1	16	318.5	50/60	167	57	180
AC-BSMJ1/0.4-18-3	0.4	26	18	358.3	50/60	167	57	210
AC-BSMJ1/0.4-20-3	0.4	28.9	20	398.1	50/60	167	57	210
AC-BSMJ1/0.4-22-3	0.4	31.8	22	437.9	50/60	167	57	245
AC-BSMJ1/0.4-24-3	0.4	34.6	24	477.7	50/60	167	57	245
AC-BSMJ1/0.4-25-3	0.4	36.1	25	497.6	50/60	170	85	210
AC-BSMJ1/0.4-30-3	0.4	43.3	30	597.1	50/60	170	85	210
AC-BSMJ1/0.4-32-3	0.4	46.2	32	636.9	50/60	170	85	248
AC-BSMJ1/0.4-35-3	0.4	50.5	35	696.7	50/60	170	85	248
AC-BSMJ1/0.4-40-3	0.4	57.7	40	796.2	50/60	170	85	248
AC-BSMJ1/0.4-45-3	0.4	65	45	895.7	50/60	248	110	200
AC-BSMJ1/0.4-50-3	0.4	72.2	50	995.2	50/60	248	110	200
AC-BSMJ1/0.4-60-3	0.4	86.6	60	1194.3	50/60	248	110	220
AC-BSMJ1/0.45-8-3	0.45	10.3	8	125.8	50/60	167	57	110
AC-BSMJ1/0.45-10-3	0.45	12.8	10	157.3	50/60	167	57	130
AC-BSMJ1/0.45-12-3	0.45	15.4	12	188.7	50/60	167	57	180
AC-BSMJ1/0.45-14-3	0.45	18	14	220.2	50/60	167	57	180
AC-BSMJ1/0.45-15-3	0.45	19.2	15	235.9	50/60	167	57	180
AC-BSMJ1/0.45-16-3	0.45	20.5	16	251.6	50/60	167	57	180
AC-BSMJ1/0.45-18-3	0.45	23.1	18	283.1	50/60	167	57	210
AC-BSMJ1/0.45-20-3	0.45	25.7	20	314.5	50/60	167	57	210
AC-BSMJ1/0.45-22-3	0.45	28.2	22	346	50/60	167	57	210
AC-BSMJ1/0.45-24-3	0.45	30.8	24	377.5	50/60	167	57	245
AC-BSMJ1/0.45-25-3	0.45	32.1	25	393.2	50/60	170	85	210
AC-BSMJ1/0.45-30-3	0.45	38.5	30	471.8	50/60	170	85	210
AC-BSMJ1/0.45-32-3	0.45	41.1	32	503.3	50/60	170	85	248
AC-BSMJ1/0.45-35-3	0.45	44.9	35	550.4	50/60	170	85	248
AC-BSMJ1/0.45-40-3	0.45	51.3	40	629.1	50/60	170	85	248
AC-BSMJ1/0.45-45-3	0.45	57.7	45	707.7	50/60	248	110	200
AC-BSMJ1/0.45-50-3	0.45	64.2	50	786.3	50/60	248	110	200
AC-BSMJ1/0.45-60-3	0.45	77	60	943.6	50/60	248	110	220
AC-BSMJ1/0.48-8-3	0.48	9.6	8	110.6	50/60	167	57	110
AC-BSMJ1/0.48-10-3	0.48	12	10	138.2	50/60	167	57	130
AC-BSMJ1/0.48-12-3	0.48	14.4	12	165.9	50/60	167	57	180
AC-BSMJ1/0.48-14-3	0.48	16.8	14	193.5	50/60	167	57	180
AC-BSMJ1/0.48-15-3	0.48	18	15	207.3	50/60	167	57	180
AC-BSMJ1/0.48-16-3	0.48	19.2	16	221.2	50/60	167	57	180
AC-BSMJ1/0.48-18-3	0.48	21.7	18	248.8	50/60	167	57	210
AC-BSMJ1/0.48-20-3	0.48	24.1	20	276.5	50/60	167	57	210
AC-BSMJ1/0.48-22-3	0.48	26.5	22	304.1	50/60	167	57	245
AC-BSMJ1/0.48-24-3	0.48	28.9	24	331.7	50/60	167	57	245
AC-BSMJ1/0.48-25-3	0.48	30.1	25	345.6	50/60	170	85	210
AC-BSMJ1/0.48-30-3	0.48	36.1	30	414.7	50/60	170	85	210
AC-BSMJ1/0.48-32-3	0.48	38.5	32	442.3	50/60	170	85	248
AC-BSMJ1/0.48-35-3	0.48	42.1	35	483.8	50/60	170	85	248
AC-BSMJ1/0.48-40-3	0.48	48.1	40	552.9	50/60	170	85	248
AC-BSMJ1/0.48-45-3	0.48	54.1	45	622	50/60	248	110	200
AC-BSMJ1/0.48-50-3	0.48	60.1	50	691.1	50/60	248	110	200
AC-BSMJ1/0.48-60-3	0.48	72.2	60	829.4	50/60	248	110	220
AC-BSMJ1/0.23-8-3	0.23	20.1	8	481.6	50/60	167	57	180
AC-BSMJ1/0.23-10-3	0.23	25.1	10	602	50/60	167	57	180
AC-BSMJ1/0.23-12-3	0.23	30.1	12	722.4	50/60	167	57	210
AC-BSMJ1/0.23-14-3	0.23	35.1	14	842.8	50/60	167	57	245
AC-BSMJ1/0.23-15-3	0.23	37.7	15	903	50/60	167	57	245
AC-BSMJ1/0.23-16-3	0.23	40.2	16	963.2	50/60	167	57	245
AC-BSMJ1/0.23-20-3	0.23	50.2	20	1204.1	50/60	180	95	210
AC-BSMJ1/0.23-25-3	0.23	62.8	25	1505.1	50/60	180	95	250
AC-BSMJ1/0.23-30-3	0.23	75.3	30	1806.1	50/60	270	120	210
AC-BSMJ1/0.525-8-3	0.525	8.8	8	92.4	50/60	167	57	130
AC-BSMJ1/0.525-10-3	0.525	11	10	115.5	50/60	167	57	130
AC-BSMJ1/0.525-12-3	0.525	13.2	12	138.7	50/60	167	57	180
AC-BSMJ1/0.525-14-3	0.525	15.4	14	161.8	50/60	167	57	180
AC-BSMJ1/0.525-15-3	0.525	16.5	15	173.3	50/60	167	57	180
AC-BSMJ1/0.525-16-3	0.525	17.6	16	184.9	50/60	167	57	180
AC-BSMJ1/0.525-18-3	0.525	19.8	18	208	50/60	167	57	210
AC-BSMJ1/0.525-20-3	0.525	22	20	231.1	50/60	167	57	210
AC-BSMJ1/0.525-25-3	0.525	27.5	25	288.9	50/60	170	85	210
AC-BSMJ1/0.525-30-3	0.525	33	30	346.6	50/60	170	85	210
AC-BSMJ1/0.525-40-3	0.525	44	40	462.2	50/60	170	85	248
AC-BSMJ1/0.525-50-3	0.525	55	50	577.7	50/60	248	110	200
AC-BSMJ1/0.525-60-3	0.525	66	60	693.3	50/60	248	110	200
AC-BSMJ1/0.69-8-3	0.69	6.7	8	53.5	50/60	167	57	130
AC-BSMJ1/0.69-10-3	0.69	8.4	10	66.9	50/60	167	57	130
AC-BSMJ1/0.69-12-3	0.69	10	12	80.3	50/60	167	57	180
AC-BSMJ1/0.69-14-3	0.69	11.7	14	93.6	50/60	167	57	180
AC-BSMJ1/0.69-15-3	0.69	12.6	15	100.3	50/60	167	57	180
AC-BSMJ1/0.69-16-3	0.69	13.4	16	107	50/60	167	57	210
AC-BSMJ1/0.69-18-3	0.69	15.1	18	120.4	50/60	167	57	210
AC-BSMJ1/0.69-20-3	0.69	16.7	20	133.8	50/60	167	57	210
AC-BSMJ1/0.69-25-3	0.69	20.9	25	167.2	50/60	170	85	210
AC-BSMJ1/0.69-30-3	0.69	25.1	30	200.7	50/60	170	85	210
AC-BSMJ1/0.69-40-3	0.69	33.5	40	267.6	50/60	170	85	248
AC-BSMJ1/0.69-50-3	0.69	41.8	50	334.5	50/60	248	110	200
AC-BSMJ1/0.69-60-3	0.69	50.2	60	401.4	50/60	248	110	220

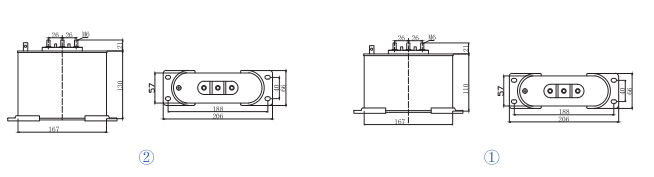

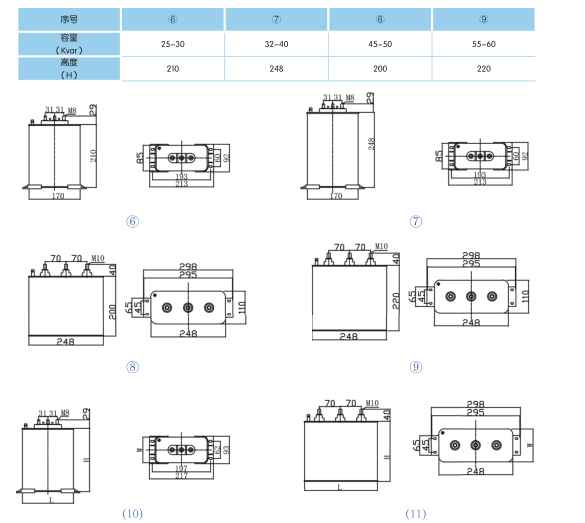

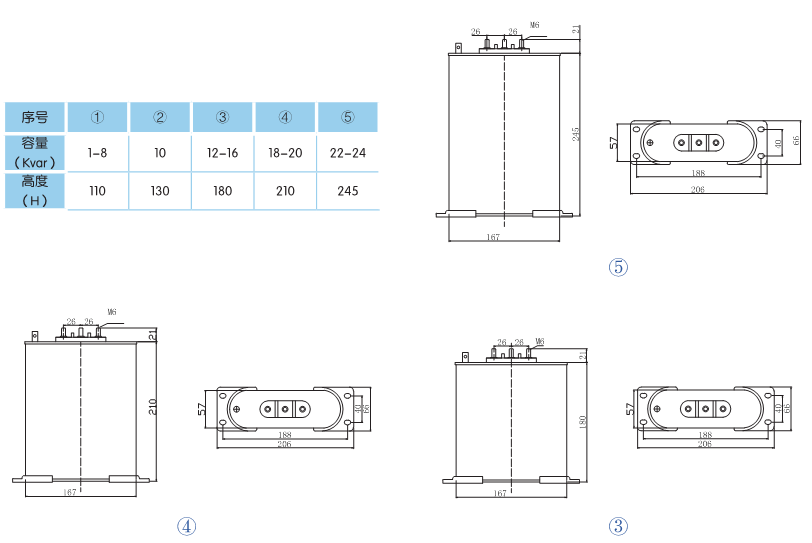

三相共補系列（三角形接線接法）外形尺寸與安裝尺寸圖：

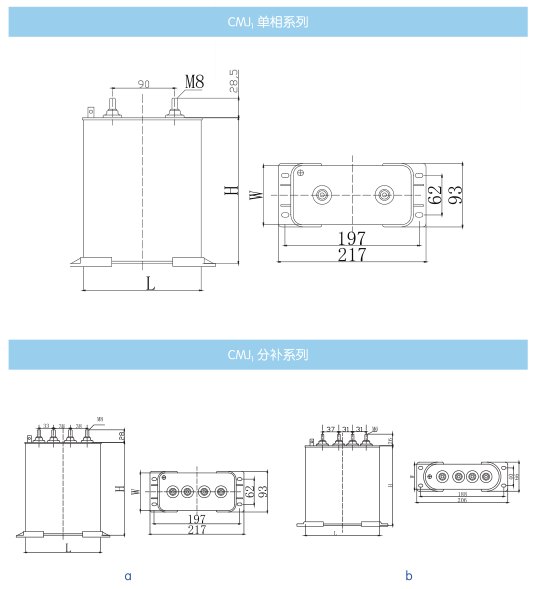

分相補償并聯電容器：出線兩個端子/四個端子，接線方式均為星形接法。
